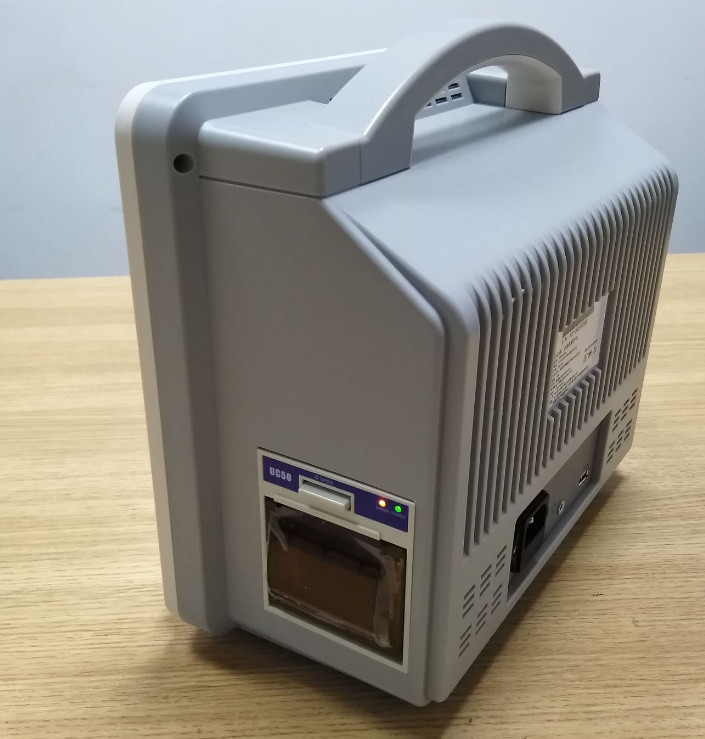

Portable ECG Medical Device for Home All In One Detector Off-White ABS Material

Standard parameters:

ECG:

Lead selection: five-lead standard; up to 7 leads can be displayed on the same screen

I, II, III, AVR, AVL, AVF, V chest leads

ECG detection range: 0-350bpm

Resolution: 1bpm

Accuracy: ±1%

ECG magnification width: 0.05Hz-100 Hz

S-T segment monitoring: -2.0mV~2.0mV

Arrhythmia analysis: yes

Electrode drop indication: sound, light prompt

Scanning speed: 6.25, 12.5, 25, 50mm/sec

Gain selection: ×1/2, ×1, ×2, ×4

ECG calibration: 1mV+5%

Protective isolation withstands 4000V/AC/50Hz voltage;

ECG cable lead wire:

Standard configuration: adult universal ECG cable

Optional configuration: ECG cable for children and newborns

Alarm: The upper and lower limits of the alarm value can be set and automatically memorized; there is an alarm review;

Blood oxygen saturation:

Display: blood oxygen value, pulse histogram, waveform, pulse value

Blood oxygen range: 0%-100% adult/child/newborn

Resolution: 1%

Accuracy: ±2% (Undefined below 70%)

Pulse rate:

Measuring range: 0～2501bpm

Pulse accuracy: ±1bpm

Alarm range: upper limit 80 ~ 2501bpm

Lower limit 20～1501bpm

sensor:

Standard configuration: adult soft finger ring

Optional configuration: soft finger ring for children, newborn strap

Alarm value: upper and lower limits can be set, automatic memory

Non-invasive blood pressure:

Measurement method: intelligent oscillation method

Measurement parameters: systolic blood pressure, diastolic blood pressure, mean blood pressure, pulse rate

Working mode: manual, automatic, continuous measurement

Unit: mmHg/kPa optional

Measurement interval time of automatic measurement mode: adjustable from 0 to 250min

Overvoltage protection: software and hardware overvoltage protection

Measuring range: Adult: 10mmHg～300mmHg

Children: 10mmHg～200mmHg

Neonatal 10mmHg～155mmHg

Cuff pressure range: 0-320 mmHg

Cuff:

Standard configuration: adult cuff

Select Configurations: Neonatal Cuff, Child Cuff

Cuff inflation time: less than 6 seconds

Test deflation time: less than 15 seconds

Alarm range:

Systolic blood pressure upper limit 120-240mmHg

Lower limit 40-150 mmHg

Average pressure upper limit 70-200 mmHg

Lower limit 20-120 mmHg

Diastolic blood pressure upper limit 50-80 mmHg

Lower limit 10-80 mmHg

Probe:

Standard configuration: permanent body temperature probe

Select configuration: esophageal temperature probe, rectal temperature probe.

Alarm value: upper and lower limits can be set, automatic memory

Alarm: All monitoring parameters can be set to alarm, and it has an alarm device that emits sound and light, and can cancel the alarm

Breathe:

Measurement method: thoracic impedance method

Respiration rate (RR): a. Measurement range: 0—120bpm

b. Measurement accuracy: ±1bpm or 5%bp

Alarm: The upper and lower limits of the alarm value can be set and automatically memorized
